Aluminium Products

Facades & Skylights

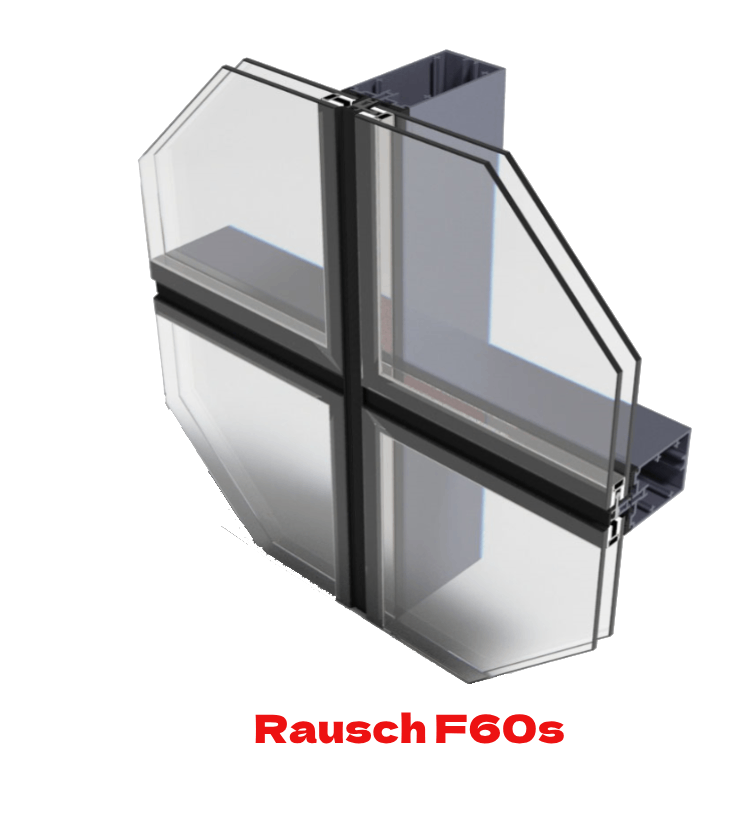

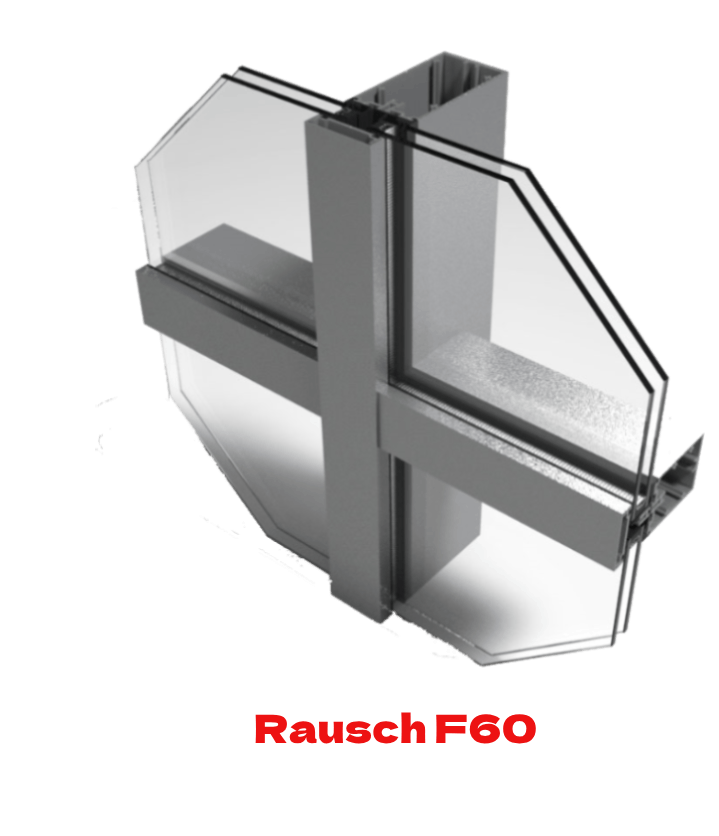

Curtain wall series for windows sealed with EPDM gasket system, extruded profiles from alloy AA 6063 T6, the dimensional tolerances of the profiles are conformed to the European Standards UNI EN 12020 -2:2002 system able to carry glass weight up to 250 kg. A distinctive feature, every single detail has been analyzed in its development to provide an enormous of advantages: Economical solutions and maximal energy savings through variable heat insulation with various types of insulation blocks. Maximum static values by means of an optimized profile design. Integrated drainage system in continuous gasket in two levels. Profiles are all suited for mullion and transom usage, resulting in less off-cut and optimized storage. The connectors are identical for F60 & F60S and for all system depths. Easy butt joint with straight profile cuts, no notching required. Various options for structural requirements and assembly methods. Extremely rigid connections due to a spreader-clamping mechanism when fixing with screws. Ideal for the pre-fabrication of transportable units in the workshop. The T-connectors can be used as profiles for structural reinforcement, head or sill connections.
